01
Project Challenge
Objective
The project presents a summary of the development of a database of gym routines that clients can use as a tool to achieve their health and fitness goals. The objective was to produce a working application, which can be incorporated within a social fitness app.The Waterfall Methodology was used to supervise the ebb and flow of progress, highlighting the interactions, research and inspirations used to accomplish the finished product.
-

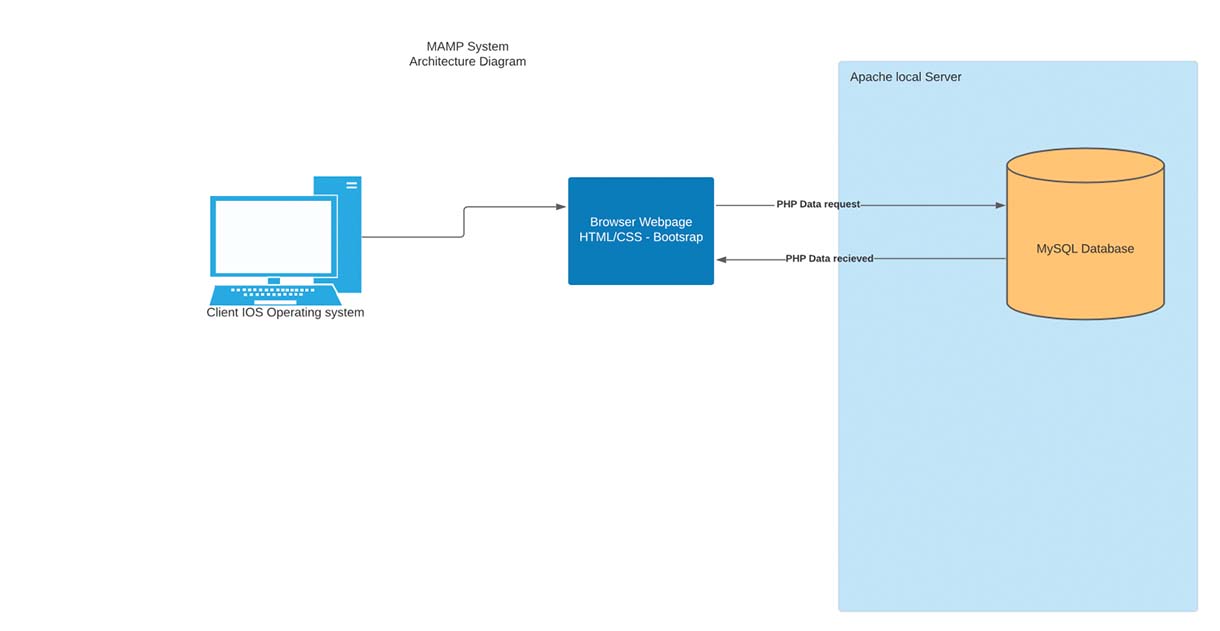

System Architecture -

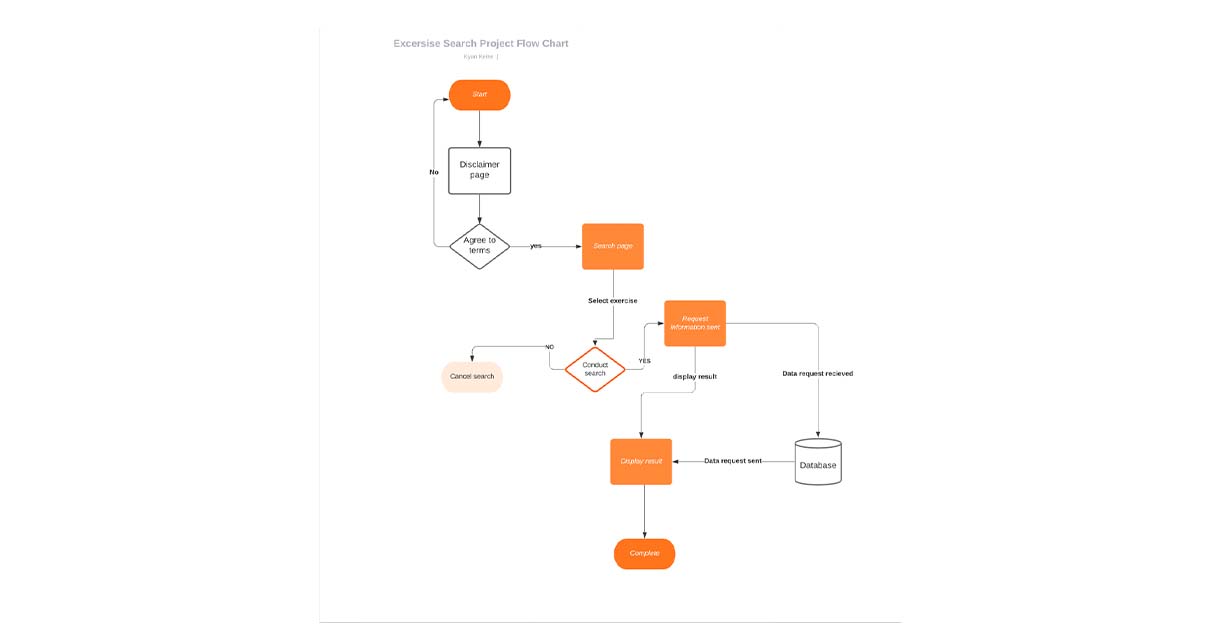

System Flowchart -

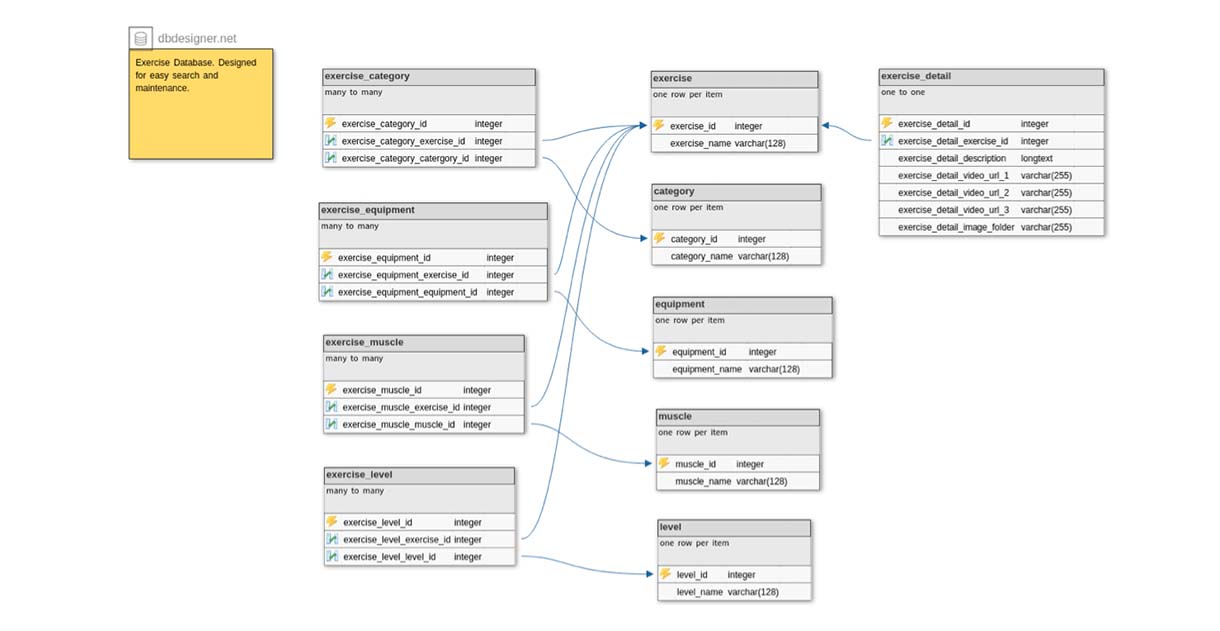

Relational Database Design
02
Design Approach
Objective

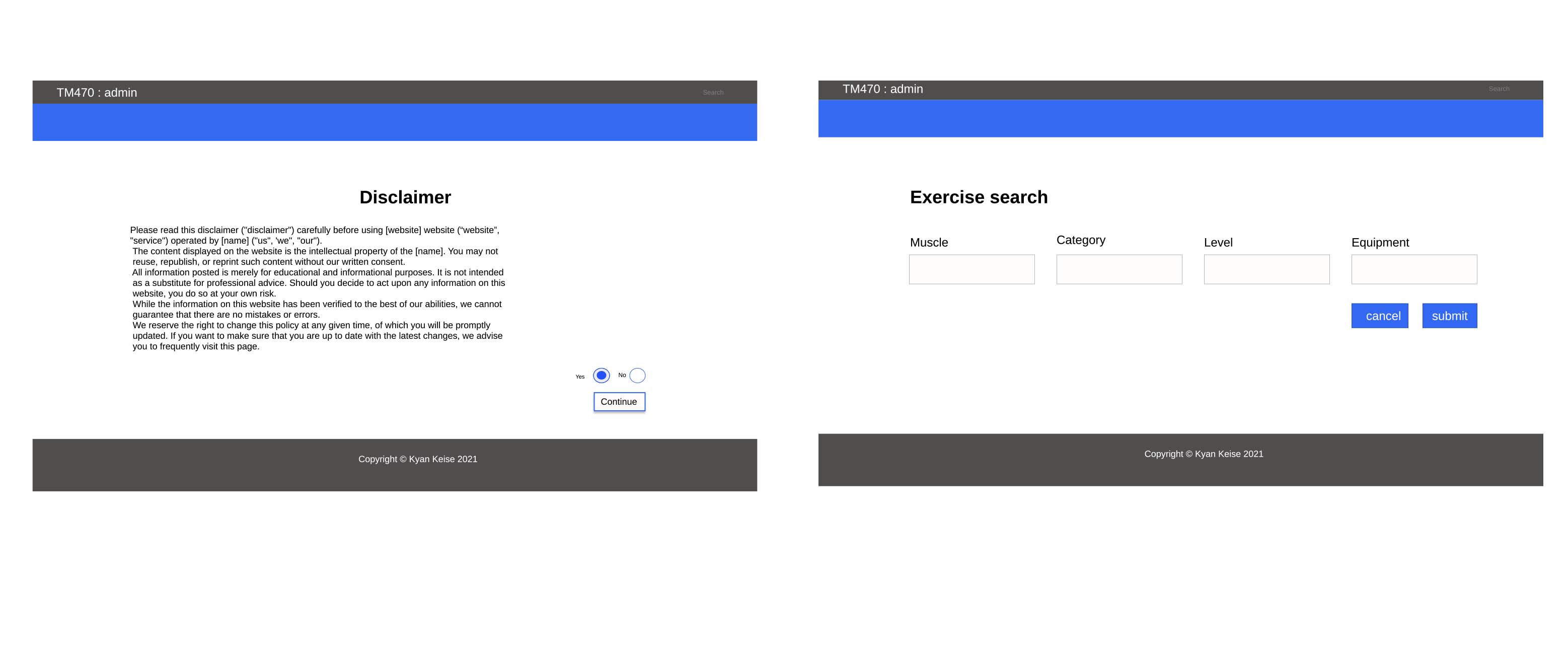

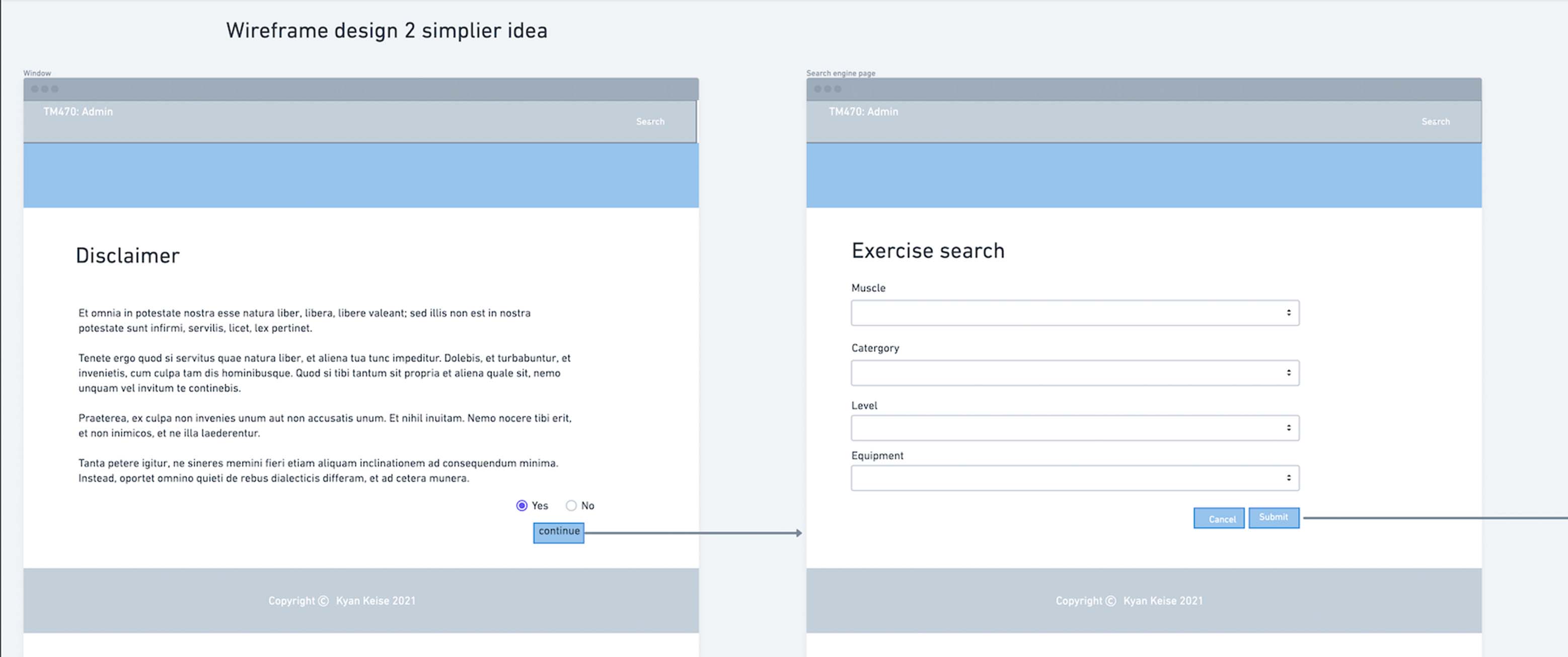

Whimsical was used to draft the initial ideas. The primary focus was on a highly interactive UI. However, due to the time constraints of the project, a simpler design was required to ensure that it was completed in a timely manner. The second design represented a simple but effective interface that does what is necessary. The final design, which will be based on the Web App, was created using Figma.
The project explores a broad range of skills required on both the client and server side to make the Web application work. This project includes a front-end UI framework (Bootstrap) to showcase my HTML /CSS and JavaScript skills. A server-side language (PHP) to program the business logic. A database management system (MySQL) to populate the relational database.
-

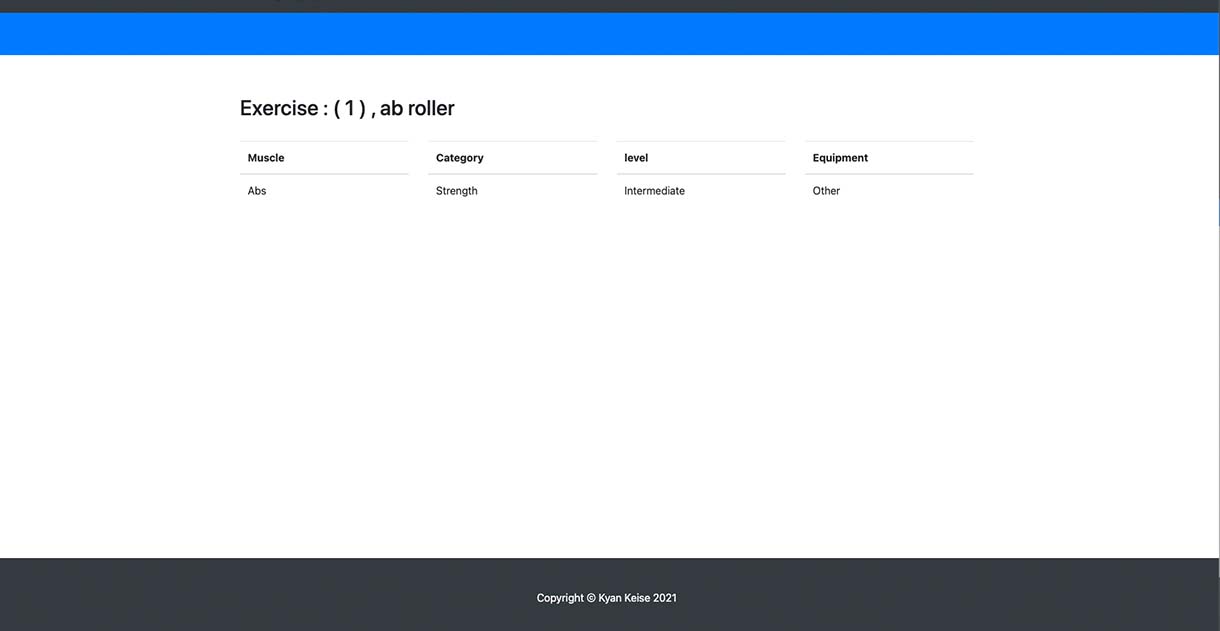

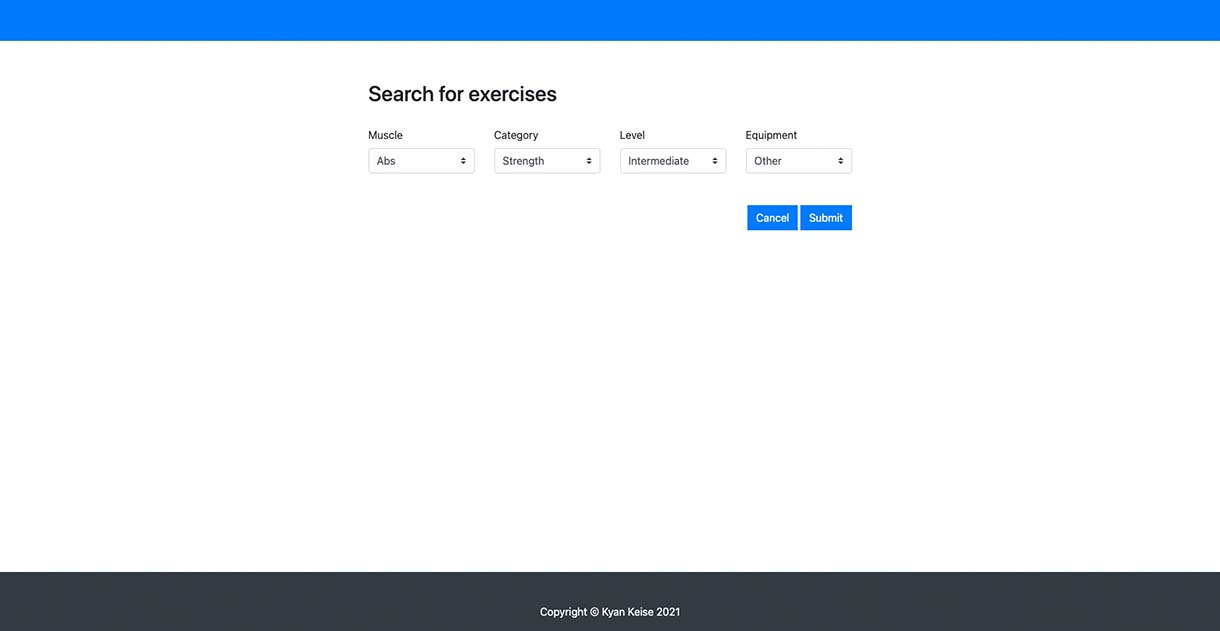

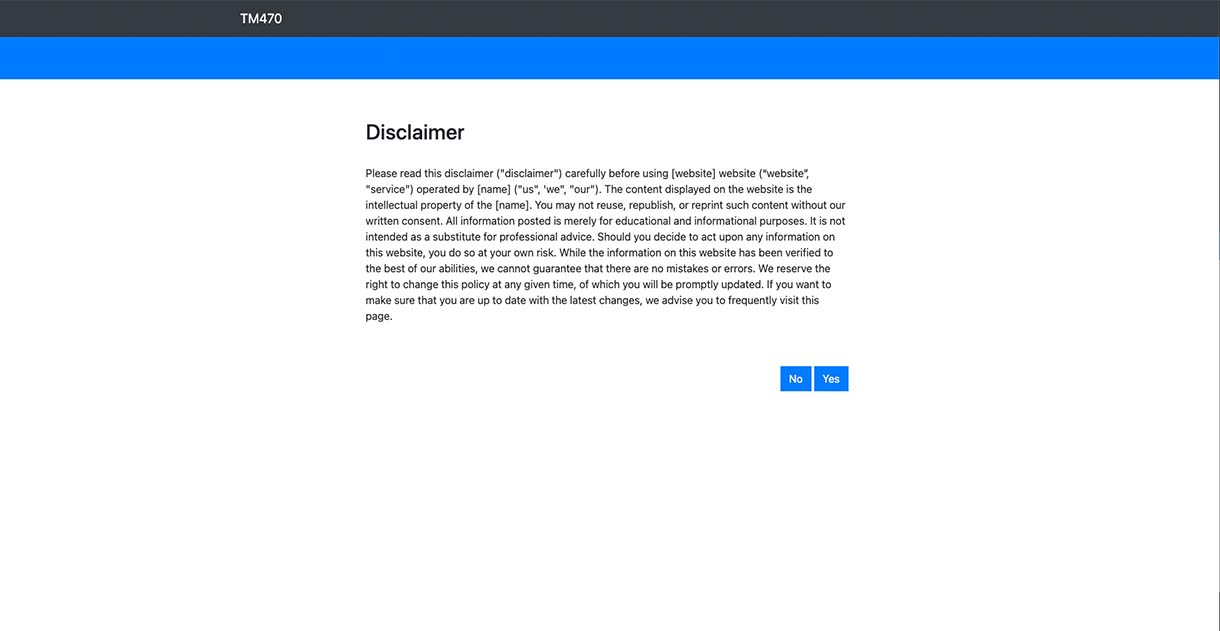

Final Project 1 -
Final Project 2 -
Final Project 3
